Parts of a Roof System Explained: Decking, Underlayment, Flashing & More

When you look up at your home, you see shingles. But as a professional roofing contractor in Northeast Ohio, I can tell you that a residential roof is an engineered, multi-layered protective system. A complete asphalt shingle roof consists of ten key components: roof decking (sheathing), ice and water shield, underlayment, drip edge, starter strips, field shingles, ridge caps, attic ventilation, metal flashing, and gutters. If one layer fails, your home becomes vulnerable to leaks, rot, and severe storm damage.

I am Kevin Stone, Chairman & Founder of YICN Roofing in Bedford Heights, Ohio. Over my years helping homeowners across Greater Cleveland and the Lake Erie snowbelt, I have explained many estimates. When contractors hand you a quote filled with terms like "ice and water shield," "step flashing," and "soffit intake," it can feel confusing. This guide walks you through every part of a residential roof system from the wooden frame up, explains why each layer matters for Northeast Ohio weather, and gives you the vocabulary to review roofing quotes with confidence.

Key Takeaways

• A roof is an integrated system: Shingles are only the outer shield; underlying water barriers and metal flashing prevent leaks during severe storms.

• Northeast Ohio requires ice protection: The International Residential Code (IRC) mandates self-adhering membrane (ASTM D1970) extending at least 24 inches inside the warm wall line to stop ice dams.

• Attic ventilation prolongs roof life: Balanced soffit intake and ridge exhaust vents stop winter ice dams and keep summer heat from baking shingles.

• Flashing is your main leak defense: The National Roofing Contractors Association (NRCA) notes that over 80% of roof leaks occur around chimneys, walls, and vents where metal flashing directs water away.

• Knowing terminology saves money: Understanding roof system components helps you spot missing layers or low-grade materials before signing a contract.

1. The Foundation: Roof Decking (Sheathing)

What Is Roof Decking and Why Is It Critical?

Roof decking—or sheathing—is the structural wooden substrate nailed directly to your home's roof rafters or trusses. In residential roofing, decking typically consists of 7/16-inch OSB or 1/2-inch exterior CDX plywood, meeting span standards set by APA – The Engineered Wood Association. Decking supports all upper layers but remains hidden until old shingles are torn off during replacement.

What Deck Rot Looks Like and When It Gets Replaced

During tear-off, roofers inspect every sheet of wood. Signs of damaged sheathing include soft spots, delaminated plywood, swollen OSB edges, dark mold, and rusted nails pulling through decayed wood fibers. Under local building codes and specs from GAF Roofing Systems and Owens Corning Roofing, contractors cannot install new shingles over rotten wood. Damaged sections must be cut back to rafter centers and replaced. Spotting compromised wood early is one of the clearest signs you need a new roof before water damages interior ceilings.

2. The Vulnerability Shield: Ice & Water Shield

Defending Northeast Ohio Eaves Against Ice Dams

In Bedford Heights and across Greater Cleveland, lake-effect snow and freeze-thaw cycles create heavy ice dams. An ice dam forms when attic heat melts snow on the upper roof. Runoff flows down to cold eave overhangs and freezes into an ice ridge, causing meltwater to pool and back up under shingles.

Ice and water shield is a self-adhering polymer-modified bitumen membrane complying with ASTM D1970 standards. It sticks directly to clean wooden decking, self-sealing around nail shanks to form a watertight gasket.

Building Code Rules for Leak Barriers

Under IRC Section R905.1.2, roofs in cold climates must feature an eave ice barrier extending from the eave edge upward to a point at least 24 inches inside the interior warm wall line. Roofers also install ice and water shield in roof valleys, around chimneys, skylights, plumbing stacks, and low-slope transitions.

3. The Secondary Moisture Barrier: Roof Underlayment

Synthetic vs. Traditional Felt Underlayment

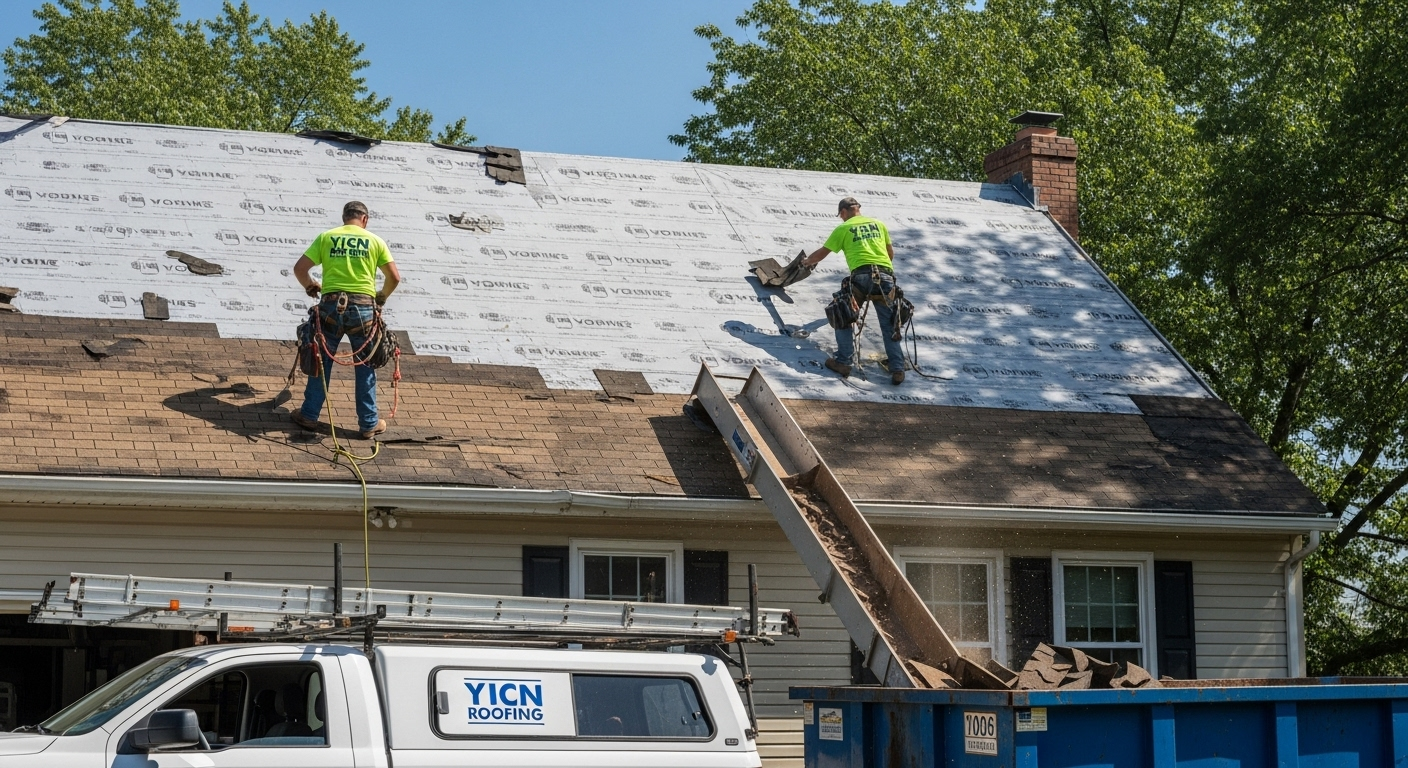

After placing ice and water shield along eaves and valleys, roofers cover remaining wooden decking with roof underlayment. Underlayment serves as a secondary water barrier beneath shingles, preventing moisture from saturating wood if wind drives rain sideways.

For decades, contractors used asphalt-saturated organic felt paper (15-pound or 30-pound felt) under ASTM D226 and ASTM D4869 standards. Today, modern installers prefer synthetic polyolefin underlayment meeting ASTM D8257 specifications. Synthetic underlayment offers up to 25 times higher tear resistance, remains 100% waterproof, and resists UV degradation. Major shingle manufacturers mandate synthetic underlayments for non-prorated system warranties.

4. The Edge Protection: Drip Edge Flashing

Directing Water Away from Your Fascia

Drip edge is an L-shaped or T-shaped metal flashing—typically painted aluminum, galvanized steel, or copper—installed along perimeter roof edges. Its angled drip leg directs rainwater off shingle edges into gutter troughs. Without drip edge flashing, water curls backward beneath shingle overhangs, rotting fascia boards and decaying wooden soffits.

Proper Eave vs. Rake Installation Order

IRC Section R905.2.8.5 mandates drip edge flashing at both eaves and rakes. The installation sequence is vital:

• At Eaves: Drip edge is fastened directly to bare wood BEFORE underlayment or ice shield is laid, ensuring water flows over the metal into the gutter.

• At Rakes: Drip edge is installed OVER top of underlayment to prevent wind-driven rain from lifting underlayment edges.

5. The Wind Barrier: Starter Strip Shingles

Protecting Roof Edges from High Wind Uplift

The first row of shingles installed at your eaves and gable ends is a specialized, factory-manufactured starter strip shingle rather than a cut-up field shingle. Cutting 3-tab field shingles in half leaves roof perimeters vulnerable to wind blow-offs.

Factory starter strips feature a continuous, aggressive sealant strip along the outer edge. Solar heat activates this adhesive, bonding the first course of field shingles down firmly. Starter strips also seal joints between field shingle tabs and help shingle systems achieve wind resistance ratings up to 130 mph during Lake Erie windstorms.

6. The Visible Shield: Field Shingles

3-Tab vs. Architectural (Laminated) Shingles

Field shingles form the primary weather-shedding surface covering your roof planes. Manufactured to ASTM D3462 standards, asphalt shingles feature a fiberglass mat core coated in weather-grade asphalt and ceramic mineral granules that protect against solar UV rays.

Homeowners choose between two primary shingle styles:

• 3-Tab Shingles: Flat, single-layer shingles with cutouts. They carry a 60 mph wind rating (ASTM D3161 Class D) and last 20 to 25 years.

• Architectural Shingles: Dimensional shingles built by laminating multiple fiberglass layers. They feature a 3D appearance, carry a 130 mph wind rating (ASTM D7158 Class H), and last 30 to 50 years.

When calculating roof replacement cost in Cleveland, architectural shingles provide greater longevity and storm protection. Choosing dimensional shingles is standard when investing in a complete roof replacement in Cleveland.

7. The Peak Cover: Ridge Cap Shingles

Sealing the Highest Points of Your Roof

Where opposing roof planes meet at hips and main ridge lines, standard field shingles cannot simply be folded over the peak because bending cracks the asphalt matrix. Instead, contractors install specialized ridge cap shingles designed to cover roof peaks smoothly.

Ridge caps cover continuous exhaust ridge vents, letting hot air escape while blocking wind-driven rain and snow. They also frame roof lines with a bold profile and overlap in the direction of prevailing winds to resist lifting during high storms.

8. The Breathing Mechanism: Attic Ventilation

Balancing Intake and Exhaust Vents

A healthy roof system must breathe. Proper attic ventilation requires a balanced 50/50 combination of low intake vents (soffit vents) and high exhaust vents (ridge vents). Under IRC Section R806, codes require 1 square foot of Net Free Ventilating Area (NFVA) for every 150 square feet of attic floor space (or 1:300 when upper exhaust vents are properly balanced).

Balanced attic ventilation provides critical benefits year-round:

• Winter Protection: Sweeps out warm attic air before it melts snow on the roof deck, preventing ice dam formation.

• Summer Protection: Evacuates hot air (which can exceed 150°F in unventilated attics), preventing asphalt blistering, early granule loss, and high cooling bills.

• Moisture Control: Prevents interior home humidity from condensing on roof sheathing and growing mold.

9. The Leak Defenders: Roof Flashing & Pipe Boots

Securing Roof Penetrations and Transitions

According to the NRCA, over 80% of residential roof leaks occur at flashing details rather than in field shingles. Flashing consists of custom-bent metal sheets installed at angles and penetrations.

Key flashing details include:

• Chimney Flashing: A two-part system with metal step flashing woven between shingle courses and counter-flashing cut into chimney mortar joints.

• Wall Step Flashing: L-shaped metal pieces installed along dormer side walls, channeling water down the roof slope.

• Valley Flashing: Heavy W-bend metal or reinforced ice shield laid in roof valleys where sloped sections funnel water.

• Pipe Boots: EPDM rubber or lead collars fitted over plumbing stack vents to prevent rain from entering wall cavities.

If water drips near a vent or chimney during heavy rains, call for emergency roof repair to reseal or replace flashing before internal wood rots.

10. The Water Management Extension: Gutters & Downspouts

Directing Roof Runoff Away from Foundations

While gutters attach to exterior fascia boards rather than the roof deck, they serve as a critical extension of the roof drainage system. A proper drainage setup includes seamless aluminum gutters sloped toward downspouts, gutter apron flashing tucked under shingles to prevent dripping behind troughs, and downspouts directing water at least 5 feet away from foundation walls. Clogged gutters cause water to back up under eaves, rotting fascia boards and flooding basements. Knowing how gutters interface with your roof edge helps you understand how long a roof replacement takes when replacing roofs and gutters together.

Summary Table: Roof System Components at a Glance

Frequently Asked Questions (FAQ)

What is the most important component of a roof system?

A roof operates as an integrated system, so no single part works alone. Shingles shed rain, but ice and water shield prevents backing leaks during ice dams. Flashing protects vulnerable wall joints, while attic ventilation stops heat from ruining shingles. Every layer is vital.

How do I know if my roof decking needs replacement during a re-roof?

Contractors inspect decking after tearing off old shingles and underlayment. Sheathing must be replaced if wood shows soft spots, delamination, active rot, fungal growth, or water stains. Contracts usually list a per-sheet rate for any damaged boards found.

Is ice and water shield required by code in Northeast Ohio?

Yes. IRC Section R905.1.2 and local Ohio codes mandate a self-adhering ice barrier in areas prone to ice damming. Code requires membrane coverage from the eave edge to at least 24 inches inside the warm exterior wall line.

What is the difference between 3-tab and architectural shingles?

3-tab shingles are flat, single-layer shingles rated for 60 mph winds with a 20-to-25-year lifespan. Architectural shingles are multi-layered dimensional shingles rated for 130 mph winds that last 30 to 50 years and offer superior wind resistance.

Why are my shingles losing granules or showing surface blisters?

Granule loss and blistering typically stem from poor attic ventilation. When heat gets trapped in an unventilated attic, temperatures can exceed 150°F. This extreme heat boils oils in asphalt shingles, forming surface blisters and shedding granules.

Conclusion: Protect Your Home with a Complete Roof System

Understanding roof system components empowers you to evaluate contractor quotes with confidence. A complete roof replacement requires every layer—from sound decking and drip edge metal to self-adhering ice barriers, synthetic underlayment, starter strips, and balanced ventilation.

At YICN Roofing, we build complete, code-compliant roof systems designed for Northeast Ohio's weather. Based in Bedford Heights, Kevin Stone and our veteran team ensure every home receives complete protection against snow, wind, and rain.
